Best Review for JL AUDIO JX 1000.1

JL AUDIO JX 1000.1Best Review for JL AUDIO JX 1000.1

With so many available today, it is wise to have a make you can trust. The JL AUDIO JX 1000.1 is certainly that and will be a perfect purchase. For this great price, the JL AUDIO JX 1000.1 is highly recommended and is always a regular choice amongst lots of people.


  • Rated Power 14.4V: 500W x 1 @ 4 Ohms 1,000W x 1 @ 2 Ohms
  • THD at Rated Power: 1% @ 4 Ohms
  • Frequency Response: 20Hz - 150Hz +/- 1dB
  • Input Range: 200mV - 4V RMS (Low-Level); 2.0V - 10V RMS (High-Level)

Product Description

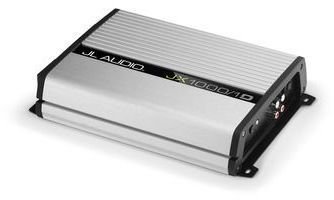

This amazingly compact amplifiers delivers a real kilowatt of power at an unbelievably great price. Using a tough-as-nails Class D circuit with a robust MOSFET power supply, the JX1000/1D is fully capable of driving the toughest subwoofer loads with very good control and excellent sound quality.

Targeted specifically for subwoofer applications, the JX1000/1D includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-200 Hz. It also features a variable bass boost at 45 Hz. with up to 12 dB of boost and an optional remote boost control. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.
Specifications:

Class D Monoblock Subwoofer Amplifier
Inputs: One Mono Pair (RCA Low-Level) or Multi-Pin (High-Level)
Subwoofer Crossover: 12 dB/octave with continuously variable cut-off frequency selection from 50 - 200Hz. Non-defeatable.
Preamp Output: Pass-through with RCA-type jacks
Bass EQ: Single-band with 45Hz centre frequency, adjustable from 0 to +12dB.
Rated Power 14.4V: 500W x 1 @ 4 Ohms 1,000W x 1 @ 2 Ohms
THD at Rated Power: 1% @ 4 Ohms
Frequency Response: 20Hz - 150Hz +/- 1dB
Input Range: 200mV - 4V RMS (Low-Level); 2.0V - 10V RMS (High-Level)
Dimensions (L x W x H): 10.94in x 7.68in x 2.09in (278 mm x 195 mm x 53 mm)
