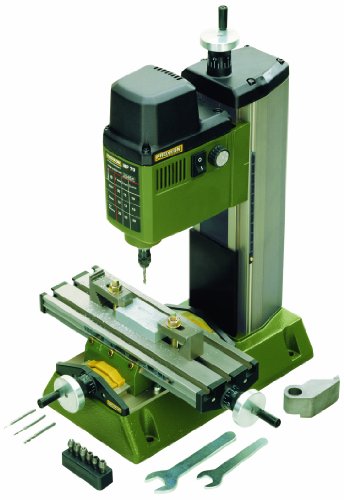

Best Review Proxxon Micromot MF 70Milling MachineWith so many on offer today, it is good to have a make you can recognise. The Proxxon Micromot MF 70Milling Machine is certainly that and will be a perfect acquisition. For this reduced price, the Proxxon Micromot MF 70Milling Machine comes widely respected and is a regular choice amongst most people.
- Precise vertical milling machine for electricians and model builders
- Also suitable for opticians, jewellers, laboratories, etc.
- Spindle speeds 5,000 - 20,000rpm
- Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm
- Vertical guide and cross table made of highly stable aluminium (surface compacted)
Product Description
·Precise vertical milling machine for electricians and model builders ·Also suitable for opticians, jewellers, laboratories, etc. ·Spindle speeds 5,000 - 20,000rpm ·Table 200 x 70mm with X-Y travel of 134 and 46mm respectively, with vertical travel 80mm ·Sturdy machine foot made of grey cast iron ·Vertical guide and cross table made of highly stable aluminium (surface compacted) ·Zero-clearance, adjustable gooseneck guide way in all axes ·Bracket housing made of die cast aluminium, with 24-pole special motor (balanced) for vibration-free work at high rotational speeds ·Use of very small cutters possible ·Tool seating with MICROMOT system clamping claws ·Movable ruler makes positioning of cross carriage easier ·All hand wheels have a scale ring that can be zeroed. Collet diameter: 1,0/1,5/2,0/2,4/3,0/3,2 mm · Operating voltage: 230 V/50 Hz · Power: 100 W · Product Specifications: Dim. Table 200 x 70 mm · Total height 340 mm · Scale ring (1 rotation = 1.0 mm, 1 division = 0.05 mm) · Travels: X (cross) 134 mm, Y (longitudinal) 46 mm, Z (height) 80 mm · Machine base (footprint) 130 x 225 mm · Rotational speed range: 5000 - 20000 rpm · Weight: 7 kg () The Proxxon Micromot MF 70 Milling Machine is for work with extremely small cutters.Base of grey cast iron. Including both vertical column and compound table of treated, quality aluminium. All axes are play-free and have adjustable gibs. Headstock of die-cast aluminium contains the 24 pole special (balanced) motor which is super stable even at high operating speeds. This stability facilitates the use of the finest cutters. The triple slit, hardened steel MICROMOT collets cover 1.0 - 1.5 - 2.0 - 2.35 - 3.0 - 3.2mm. The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm. An adjustable ruler scale eases the positioning of the workpiece. All handwheels are zero adjustable with 1 revolution = 1.0mm, 1 division = 0.05mm.
